brontosaurus arduino circuit
a brontosaurus
shaped lighting display using an Arduino Nano V3, six 74HC595 serial-in-parallel-out
shift registers driving 48 LEDs!
finished PCB (printed circuit board)
-
build PCB with green LEDs
-
build PCB with pink & green LEDs
-

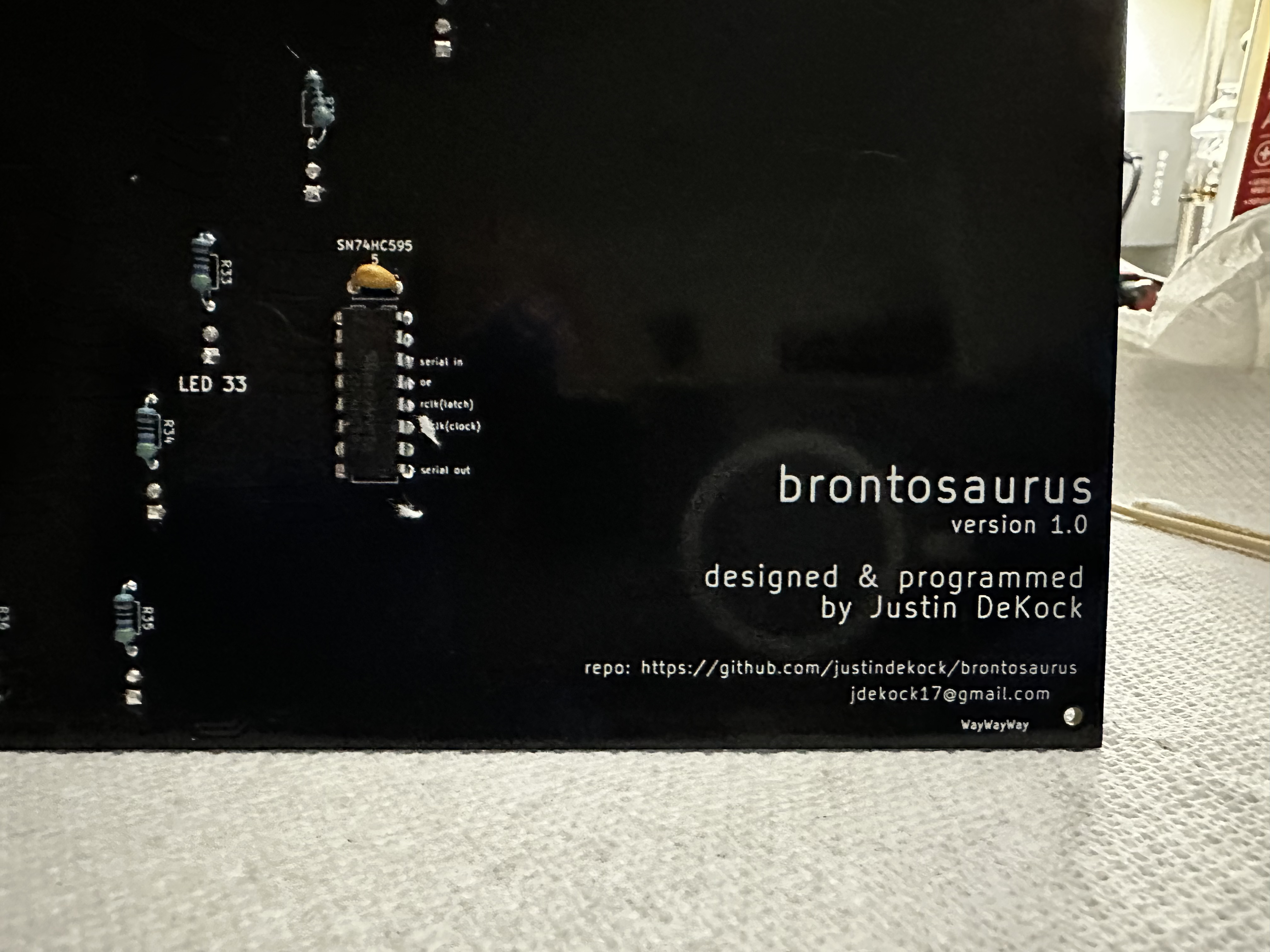

title/references printed on PCB
perfboard (soldererd) prototyping
-

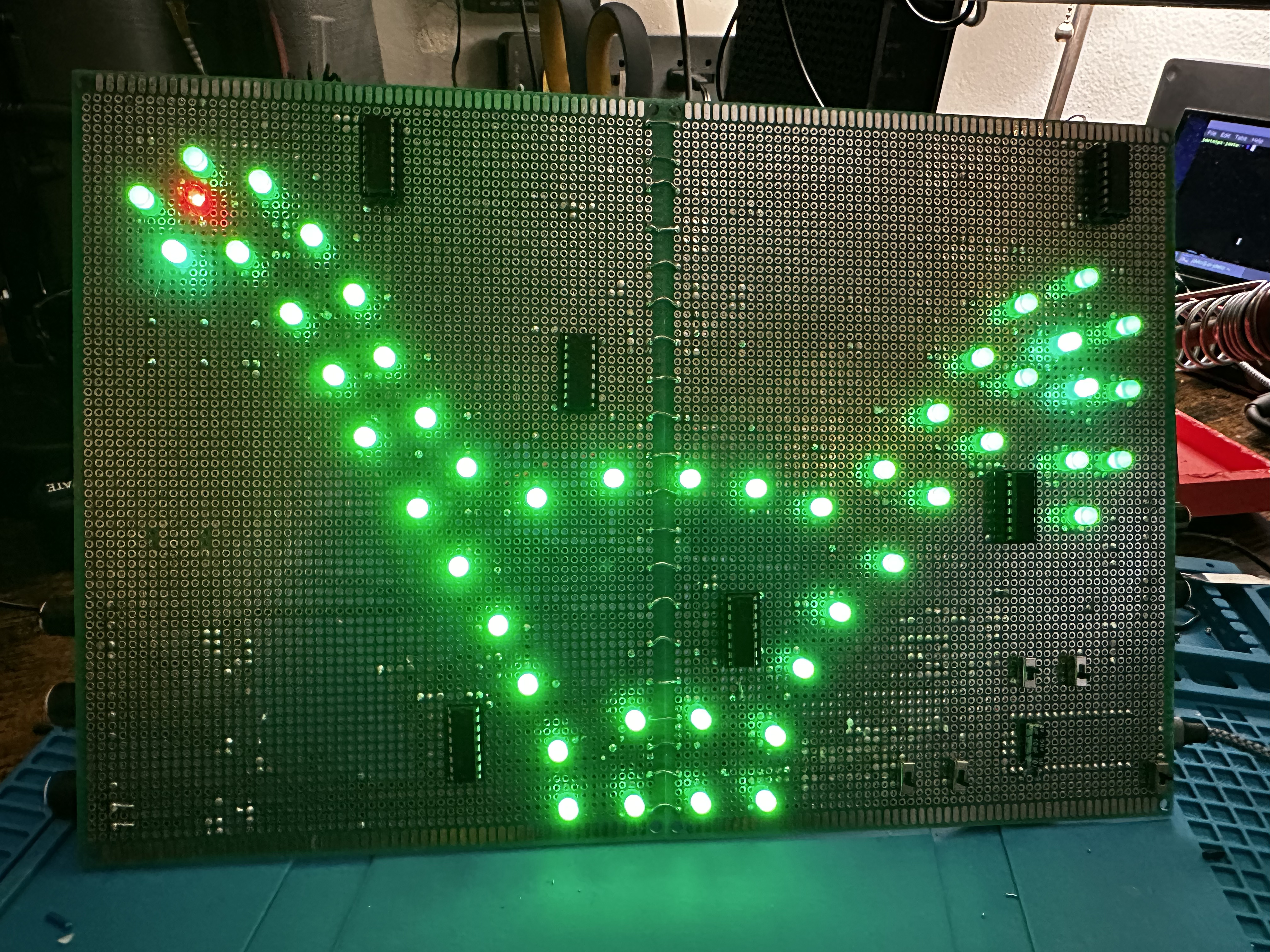

finished prototype
-

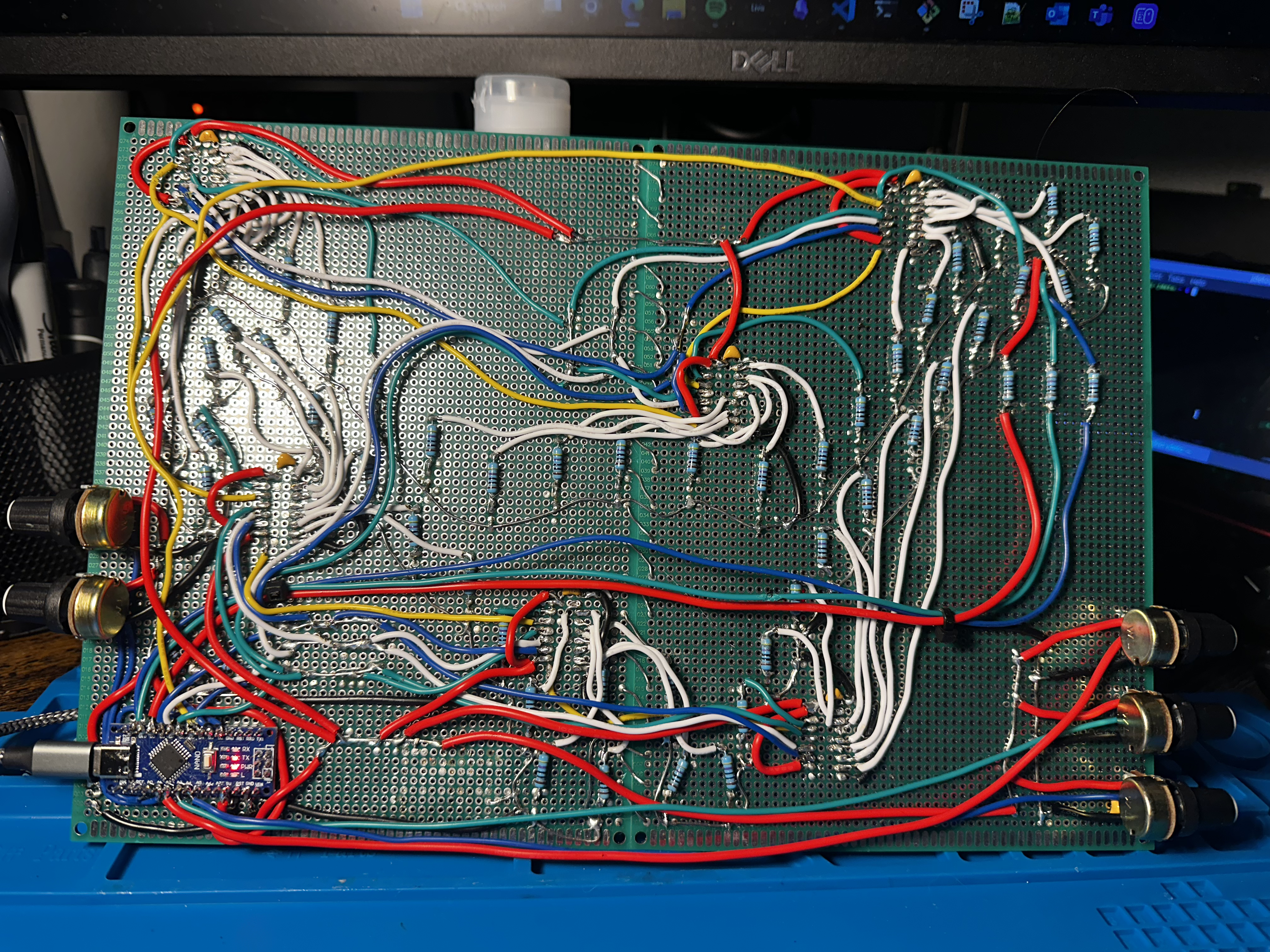

hand-soldered prototype wiring
breadboard (solderless) prototyping
-

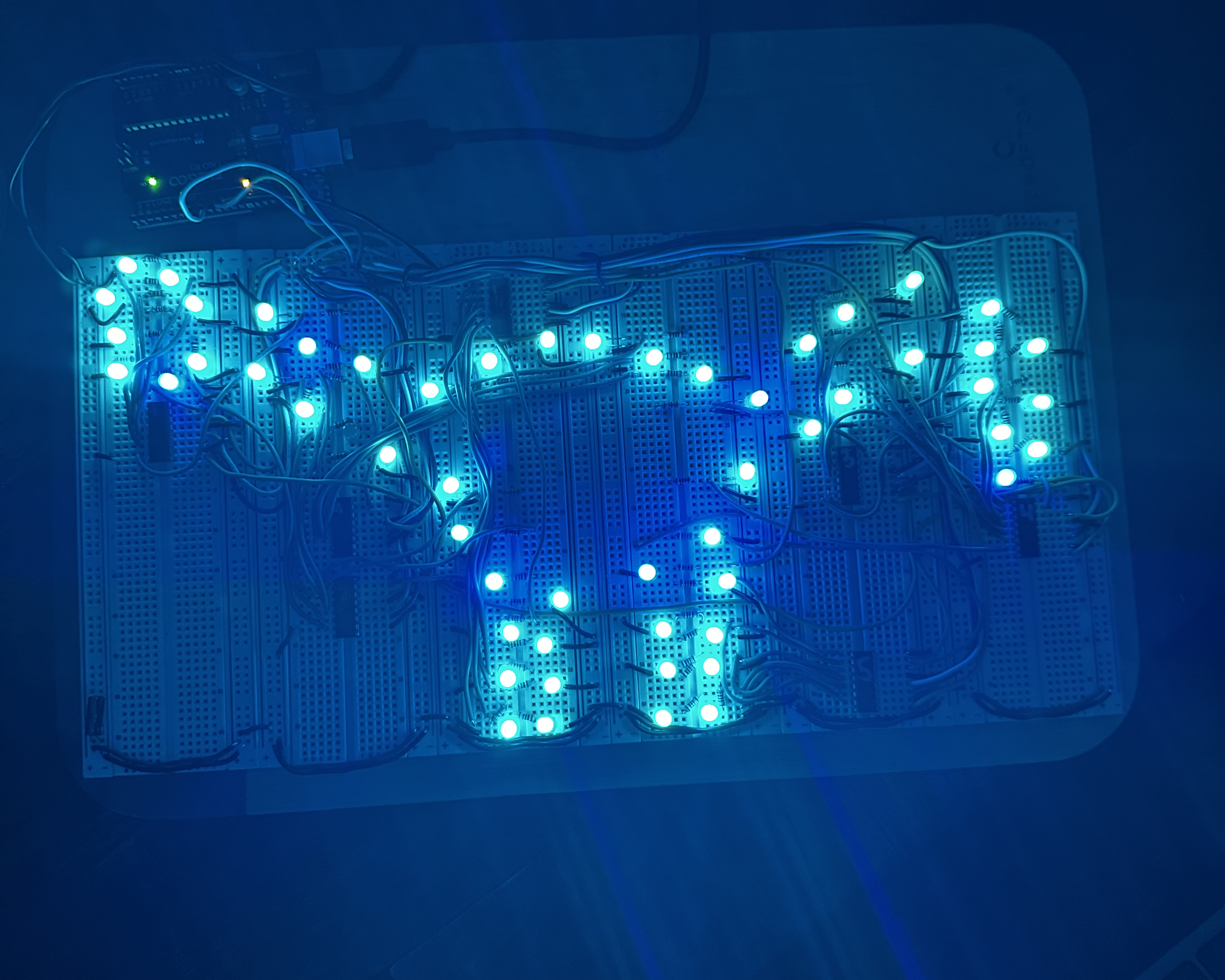

final breadboard prototype
-
breadboard wiring closeup
